Deterministic#
import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import differential_evolution
import scipy as sp
def reliability(beta0_b, d_b, L_b, Thoriz):
# --- Reliability estimation
# beta_bt: reliability curve over time for bridge b
# beta0_b: Initial reliability of bridge b at t=0
# d_b, L_b: when the degradation starts and reaches beta=0 for each bridge
# Thoriz: maximum time studied
nb = len(beta0_b)
beta_bt = np.zeros((nb, Thoriz))
for b in range(nb):
#horziontal branch
timesteps = int(np.floor(d_b[b]))
beta_bt[b, :timesteps] = beta0_b[b]
#degradation till L_b
servicelife = int(np.floor(L_b[b]))
t = np.arange(timesteps + 1, servicelife + 1)
beta_bt[b, timesteps:servicelife] = beta0_b[b] / (L_b[b] - d_b[b]) * (L_b[b] - t)
return beta_bt
def MaintenanceApplication(beta_bt, X_bt, Thoriz):
# --- Given a maintenance strategy given by X_bt, where 1 means that bridge
# b undergoes maintenance at time t, this function gives the updated
# reliability profile
updatedbeta_bt = beta_bt.copy()
InterventionTimes = np.where(np.sum(X_bt, axis=0) > 0)[0]
for t in InterventionTimes:
intervbrid = np.where(X_bt[:, t] == 1)[0]
timecells = Thoriz - t - 1
updatedbeta_bt[intervbrid, t+1:Thoriz] = beta_bt[intervbrid, :timecells]
return updatedbeta_bt
def Frequency2Schedule(y_b, nb, nt, Thoriz):
# Transforms a vector indicating the frequency to a schedule matrix [0/1]
freq_b = y_b.reshape((nt, nb)).T
cumFreq_b = cumulateFreq(freq_b)
X_bt = np.zeros((nb, Thoriz))
for b in range(nb):
idx = cumFreq_b[b, cumFreq_b[b, :] != 0].astype(int)
idx = idx[idx <= Thoriz]
if len(idx) > 0:
X_bt[b, idx - 1] = 1
return X_bt
def cumulateFreq(freq_b):
# creates the cumulative frequency
nb, nt = freq_b.shape
cumFreq_b = np.zeros((nb, nt))
for b in range(nb):
f_b = freq_b[b, freq_b[b, :] != 0]
cumFreq_b[b, :len(f_b)] = np.cumsum(f_b)
return cumFreq_b
def CountNinterv(y_b, nt, nb):
# from vector y_b, it computes the number of interventions per bridge
y_b01 = y_b != 0
freq_b = y_b01.reshape((nt, nb)).T
ninterv_b = np.sum(freq_b, axis=1)
return ninterv_b
Thoriz = 25
# for each bridge b: beta0 d(years) L(years) C(Meuros)
data = np.array([
[1, 5, 10, 0.6],
[1, 6, 11, 0.8],
[1, 7, 15, 1.0],
[1, 10, 20, 0.7]
])
beta0_b, d_b, L_b, C_b = data[:, 0], data[:, 1], data[:, 2], data[:, 3]
# Annual resources (M euro)
R = 1.4
# Initial reliability estimation
nb = len(beta0_b)
beta_bt0 = reliability(beta0_b, d_b, L_b, Thoriz)

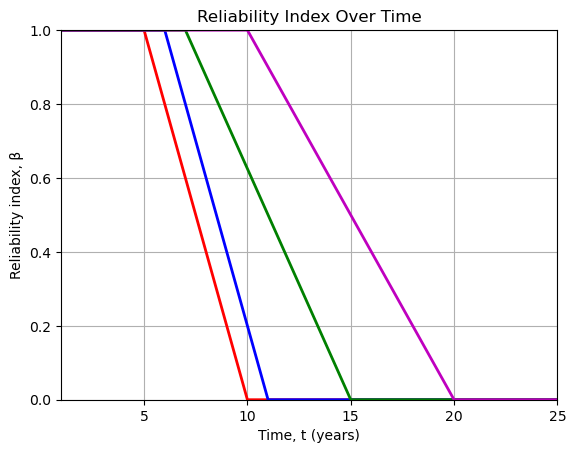

plt.figure()
col = ['r', 'b', 'g', 'm']
for b in range(nb):
plt.plot(range(1, Thoriz + 1), beta_bt0[b, :], f'-{col[b]}', linewidth=2)
plt.grid()
plt.xlim([1, Thoriz])
plt.ylim([0, 1])
plt.xlabel('Time, t (years)')
plt.ylabel('Reliability index, β')
plt.title('Reliability Index Over Time')
plt.show()
# Deterministic Optimization
# Variables -> e.g., freq=[10 2 0 0 ; 5, 5 0 0; 0 0 0 0];
maxInter_b = np.ceil(Thoriz / L_b).astype(int) + 1 #max number of interventions expected per bridge
nt = max(maxInter_b) #to dimension the matrix, max interventions experienced by the worst case.
nvars = nb * nt #number of design variables
integers = np.array([True] * nvars) #all variables are integers
# Range of definition: [0,max number of years with no interventions==L_b]
lb = np.zeros(nvars)
ub = np.zeros(nvars)
pos = 0
for b in range(nb):
# This guarantees interventions freq. within the service life (if conducted)
ub[pos:pos + maxInter_b[b]] = L_b[b] - 1
# this forces zeros after the max number of interventions expected
if maxInter_b[b] < nb:
ub[pos + maxInter_b[b]:pos + nb - 1] = 0
pos += nt
def nonlcon(y_b):
# From frequency to a schedule matrix [0/1]
X_bt = Frequency2Schedule(y_b, nb, nt, Thoriz)
# Constraint 1 >>> the last intervention is within Thoriz --> LastInterv<Thoriz --> LastInterv-Thoriz<=1 for all b
lastInterv_b = np.max(cumulateFreq(y_b.reshape((nt, nb)).T), axis=1)
c1 = lastInterv_b - Thoriz - 1
# Constraint 2 >>> C_b*X_bt <= R for all t
c2 = np.sum(C_b[:, None] * X_bt, axis=0) - R
# Constraint 3 >>> beta_bt>0 --> sum(sum(beta_bt))<=0
beta_bt = MaintenanceApplication(beta_bt0, X_bt, Thoriz)
c3 = np.array([np.sum(beta_bt == 0)])
c = np.concatenate([c1, c2, c3])
return c
cons = sp.optimize.NonlinearConstraint(nonlcon, np.array([-np.inf] * (nb + Thoriz + 1)), np.array([0] * (nb + Thoriz + 1)))
def fun(y_b):
# minimize cost trying to go for the largest time between interventions (== max y_b)
ninterv_b = CountNinterv(y_b, nt, nb)
return np.dot(C_b, ninterv_b)
bounds = [[lb[i], ub[i]] for i in range(nvars)]
result = differential_evolution(fun, bounds, constraints=cons, integrality=integers, disp = True)
print(result)
differential_evolution step 1: f(x)= 11.0
differential_evolution step 2: f(x)= 11.0
differential_evolution step 3: f(x)= 8.200000000000001
differential_evolution step 4: f(x)= 8.200000000000001
differential_evolution step 5: f(x)= 8.200000000000001
differential_evolution step 6: f(x)= 8.200000000000001
differential_evolution step 7: f(x)= 8.200000000000001
differential_evolution step 8: f(x)= 8.200000000000001
differential_evolution step 9: f(x)= 8.200000000000001
differential_evolution step 10: f(x)= 8.200000000000001
differential_evolution step 11: f(x)= 8.200000000000001
differential_evolution step 12: f(x)= 8.200000000000001
differential_evolution step 13: f(x)= 8.200000000000001
differential_evolution step 14: f(x)= 8.200000000000001
differential_evolution step 15: f(x)= 8.200000000000001
differential_evolution step 16: f(x)= 8.200000000000001
differential_evolution step 17: f(x)= 8.200000000000001
differential_evolution step 18: f(x)= 8.200000000000001
differential_evolution step 19: f(x)= 8.200000000000001
differential_evolution step 20: f(x)= 8.200000000000001
differential_evolution step 21: f(x)= 8.200000000000001
differential_evolution step 22: f(x)= 8.200000000000001
differential_evolution step 23: f(x)= 8.200000000000001
differential_evolution step 24: f(x)= 8.200000000000001
differential_evolution step 25: f(x)= 8.200000000000001
differential_evolution step 26: f(x)= 8.200000000000001
differential_evolution step 27: f(x)= 8.200000000000001
differential_evolution step 28: f(x)= 8.200000000000001
differential_evolution step 29: f(x)= 8.200000000000001
differential_evolution step 30: f(x)= 8.200000000000001
differential_evolution step 31: f(x)= 8.200000000000001
differential_evolution step 32: f(x)= 8.200000000000001
differential_evolution step 33: f(x)= 8.200000000000001
differential_evolution step 34: f(x)= 8.200000000000001
differential_evolution step 35: f(x)= 8.200000000000001
differential_evolution step 36: f(x)= 8.200000000000001
differential_evolution step 37: f(x)= 8.200000000000001
differential_evolution step 38: f(x)= 8.200000000000001
differential_evolution step 39: f(x)= 8.200000000000001
differential_evolution step 40: f(x)= 8.200000000000001
differential_evolution step 41: f(x)= 7.8
differential_evolution step 42: f(x)= 7.8
differential_evolution step 43: f(x)= 7.8
differential_evolution step 44: f(x)= 7.8
differential_evolution step 45: f(x)= 7.8
differential_evolution step 46: f(x)= 7.8
differential_evolution step 47: f(x)= 7.8
differential_evolution step 48: f(x)= 7.8
differential_evolution step 49: f(x)= 7.8
differential_evolution step 50: f(x)= 7.8
differential_evolution step 51: f(x)= 7.8
differential_evolution step 52: f(x)= 7.8
differential_evolution step 53: f(x)= 7.8
differential_evolution step 54: f(x)= 7.8
differential_evolution step 55: f(x)= 7.8
differential_evolution step 56: f(x)= 7.8
differential_evolution step 57: f(x)= 7.8
differential_evolution step 58: f(x)= 7.8
differential_evolution step 59: f(x)= 7.8
differential_evolution step 60: f(x)= 7.8
differential_evolution step 61: f(x)= 7.8
differential_evolution step 62: f(x)= 7.8
differential_evolution step 63: f(x)= 7.8
differential_evolution step 64: f(x)= 7.8
differential_evolution step 65: f(x)= 7.8
differential_evolution step 66: f(x)= 7.8
differential_evolution step 67: f(x)= 7.8
differential_evolution step 68: f(x)= 7.8
differential_evolution step 69: f(x)= 7.8
differential_evolution step 70: f(x)= 7.8
differential_evolution step 71: f(x)= 7.8
differential_evolution step 72: f(x)= 7.8
differential_evolution step 73: f(x)= 7.8
differential_evolution step 74: f(x)= 7.8
differential_evolution step 75: f(x)= 7.8
differential_evolution step 76: f(x)= 7.8
differential_evolution step 77: f(x)= 7.8
differential_evolution step 78: f(x)= 7.8
differential_evolution step 79: f(x)= 7.8
differential_evolution step 80: f(x)= 7.8
differential_evolution step 81: f(x)= 7.8
differential_evolution step 82: f(x)= 7.8
differential_evolution step 83: f(x)= 7.8
differential_evolution step 84: f(x)= 7.8
differential_evolution step 85: f(x)= 7.8
differential_evolution step 86: f(x)= 7.8
differential_evolution step 87: f(x)= 7.8
differential_evolution step 88: f(x)= 7.8
differential_evolution step 89: f(x)= 7.8
differential_evolution step 90: f(x)= 7.8
differential_evolution step 91: f(x)= 7.8
differential_evolution step 92: f(x)= 7.8
differential_evolution step 93: f(x)= 7.8
differential_evolution step 94: f(x)= 7.8
differential_evolution step 95: f(x)= 7.8
differential_evolution step 96: f(x)= 7.8
differential_evolution step 97: f(x)= 7.8
differential_evolution step 98: f(x)= 7.8
differential_evolution step 99: f(x)= 7.8
differential_evolution step 100: f(x)= 7.8
differential_evolution step 101: f(x)= 7.8
differential_evolution step 102: f(x)= 7.8
differential_evolution step 103: f(x)= 7.8
differential_evolution step 104: f(x)= 7.8
differential_evolution step 105: f(x)= 7.8
differential_evolution step 106: f(x)= 7.8
differential_evolution step 107: f(x)= 7.8
differential_evolution step 108: f(x)= 7.8
differential_evolution step 109: f(x)= 7.8
differential_evolution step 110: f(x)= 7.8
differential_evolution step 111: f(x)= 7.8
differential_evolution step 112: f(x)= 7.8
differential_evolution step 113: f(x)= 7.8
differential_evolution step 114: f(x)= 7.8
differential_evolution step 115: f(x)= 7.8
differential_evolution step 116: f(x)= 7.8
differential_evolution step 117: f(x)= 7.8
differential_evolution step 118: f(x)= 7.8
differential_evolution step 119: f(x)= 7.8
differential_evolution step 120: f(x)= 7.8
differential_evolution step 121: f(x)= 7.8
differential_evolution step 122: f(x)= 7.8
differential_evolution step 123: f(x)= 7.8
differential_evolution step 124: f(x)= 7.8
differential_evolution step 125: f(x)= 7.8
differential_evolution step 126: f(x)= 7.8
differential_evolution step 127: f(x)= 7.8
differential_evolution step 128: f(x)= 7.8
differential_evolution step 129: f(x)= 7.8
differential_evolution step 130: f(x)= 7.8
differential_evolution step 131: f(x)= 7.8
differential_evolution step 132: f(x)= 7.8
differential_evolution step 133: f(x)= 7.8
differential_evolution step 134: f(x)= 7.8
differential_evolution step 135: f(x)= 7.8
differential_evolution step 136: f(x)= 7.8
differential_evolution step 137: f(x)= 7.8
differential_evolution step 138: f(x)= 7.6
differential_evolution step 139: f(x)= 7.6
differential_evolution step 140: f(x)= 7.6
differential_evolution step 141: f(x)= 7.6
differential_evolution step 142: f(x)= 7.6
differential_evolution step 143: f(x)= 7.6
differential_evolution step 144: f(x)= 7.6
differential_evolution step 145: f(x)= 7.6
differential_evolution step 146: f(x)= 7.6
differential_evolution step 147: f(x)= 7.6
differential_evolution step 148: f(x)= 7.6
differential_evolution step 149: f(x)= 7.6
differential_evolution step 150: f(x)= 7.6
differential_evolution step 151: f(x)= 7.6
differential_evolution step 152: f(x)= 7.6
differential_evolution step 153: f(x)= 7.6
differential_evolution step 154: f(x)= 7.6
differential_evolution step 155: f(x)= 7.6
differential_evolution step 156: f(x)= 7.6
differential_evolution step 157: f(x)= 7.6
differential_evolution step 158: f(x)= 7.6
differential_evolution step 159: f(x)= 7.6
differential_evolution step 160: f(x)= 7.6
differential_evolution step 161: f(x)= 7.6
differential_evolution step 162: f(x)= 7.6
differential_evolution step 163: f(x)= 7.6
differential_evolution step 164: f(x)= 7.6
differential_evolution step 165: f(x)= 7.6
differential_evolution step 166: f(x)= 7.6
differential_evolution step 167: f(x)= 7.6
differential_evolution step 168: f(x)= 7.6
differential_evolution step 169: f(x)= 7.6
differential_evolution step 170: f(x)= 7.6
differential_evolution step 171: f(x)= 7.6
differential_evolution step 172: f(x)= 7.6
differential_evolution step 173: f(x)= 7.6
differential_evolution step 174: f(x)= 7.6
differential_evolution step 175: f(x)= 7.6
differential_evolution step 176: f(x)= 7.6
differential_evolution step 177: f(x)= 7.6
differential_evolution step 178: f(x)= 7.6
differential_evolution step 179: f(x)= 7.6
differential_evolution step 180: f(x)= 7.6
differential_evolution step 181: f(x)= 7.6
differential_evolution step 182: f(x)= 7.6
differential_evolution step 183: f(x)= 7.6
differential_evolution step 184: f(x)= 7.6
differential_evolution step 185: f(x)= 7.6
differential_evolution step 186: f(x)= 7.6
differential_evolution step 187: f(x)= 7.6
differential_evolution step 188: f(x)= 7.6
differential_evolution step 189: f(x)= 7.6
differential_evolution step 190: f(x)= 7.2
differential_evolution step 191: f(x)= 7.2
differential_evolution step 192: f(x)= 7.2
differential_evolution step 193: f(x)= 7.2
differential_evolution step 194: f(x)= 7.2
differential_evolution step 195: f(x)= 7.2
differential_evolution step 196: f(x)= 7.2
differential_evolution step 197: f(x)= 7.2
differential_evolution step 198: f(x)= 7.2
differential_evolution step 199: f(x)= 7.2
differential_evolution step 200: f(x)= 7.2
differential_evolution step 201: f(x)= 7.2
differential_evolution step 202: f(x)= 7.2
differential_evolution step 203: f(x)= 7.2
differential_evolution step 204: f(x)= 7.2
differential_evolution step 205: f(x)= 7.2
differential_evolution step 206: f(x)= 7.2
differential_evolution step 207: f(x)= 7.2
differential_evolution step 208: f(x)= 7.2
differential_evolution step 209: f(x)= 7.2
differential_evolution step 210: f(x)= 7.2
differential_evolution step 211: f(x)= 7.2
differential_evolution step 212: f(x)= 7.2
differential_evolution step 213: f(x)= 7.2
differential_evolution step 214: f(x)= 7.2
differential_evolution step 215: f(x)= 7.2
differential_evolution step 216: f(x)= 7.2
differential_evolution step 217: f(x)= 7.2
differential_evolution step 218: f(x)= 7.2
differential_evolution step 219: f(x)= 7.2
differential_evolution step 220: f(x)= 7.2
differential_evolution step 221: f(x)= 7.2
differential_evolution step 222: f(x)= 7.2
differential_evolution step 223: f(x)= 7.2
differential_evolution step 224: f(x)= 7.2
differential_evolution step 225: f(x)= 7.2
differential_evolution step 226: f(x)= 7.2
differential_evolution step 227: f(x)= 7.2
differential_evolution step 228: f(x)= 7.2
differential_evolution step 229: f(x)= 7.2
differential_evolution step 230: f(x)= 7.2
differential_evolution step 231: f(x)= 7.2
differential_evolution step 232: f(x)= 7.2
differential_evolution step 233: f(x)= 7.2
differential_evolution step 234: f(x)= 7.2
differential_evolution step 235: f(x)= 7.2
differential_evolution step 236: f(x)= 7.2
differential_evolution step 237: f(x)= 7.2
differential_evolution step 238: f(x)= 7.2
differential_evolution step 239: f(x)= 7.2
differential_evolution step 240: f(x)= 7.2
differential_evolution step 241: f(x)= 7.2
differential_evolution step 242: f(x)= 7.2
differential_evolution step 243: f(x)= 7.2
differential_evolution step 244: f(x)= 7.2
differential_evolution step 245: f(x)= 7.2
differential_evolution step 246: f(x)= 7.2
differential_evolution step 247: f(x)= 7.2
differential_evolution step 248: f(x)= 7.2
differential_evolution step 249: f(x)= 7.2
differential_evolution step 250: f(x)= 7.2
differential_evolution step 251: f(x)= 7.2
differential_evolution step 252: f(x)= 7.2
differential_evolution step 253: f(x)= 7.2
differential_evolution step 254: f(x)= 7.2
differential_evolution step 255: f(x)= 7.2
differential_evolution step 256: f(x)= 6.6
differential_evolution step 257: f(x)= 6.6
differential_evolution step 258: f(x)= 6.6
differential_evolution step 259: f(x)= 6.6
differential_evolution step 260: f(x)= 6.6
differential_evolution step 261: f(x)= 6.4
differential_evolution step 262: f(x)= 6.4
differential_evolution step 263: f(x)= 6.4
differential_evolution step 264: f(x)= 6.4
differential_evolution step 265: f(x)= 6.4
differential_evolution step 266: f(x)= 6.4
differential_evolution step 267: f(x)= 6.4
differential_evolution step 268: f(x)= 6.4
differential_evolution step 269: f(x)= 6.4
differential_evolution step 270: f(x)= 6.4
differential_evolution step 271: f(x)= 6.4
differential_evolution step 272: f(x)= 5.9
differential_evolution step 273: f(x)= 5.9
differential_evolution step 274: f(x)= 5.9
differential_evolution step 275: f(x)= 5.9
differential_evolution step 276: f(x)= 5.9
differential_evolution step 277: f(x)= 5.9
differential_evolution step 278: f(x)= 5.9
differential_evolution step 279: f(x)= 5.9
differential_evolution step 280: f(x)= 5.9
differential_evolution step 281: f(x)= 5.9
differential_evolution step 282: f(x)= 5.9
differential_evolution step 283: f(x)= 5.9
differential_evolution step 284: f(x)= 5.9
differential_evolution step 285: f(x)= 5.9
differential_evolution step 286: f(x)= 5.9
differential_evolution step 287: f(x)= 5.9
differential_evolution step 288: f(x)= 5.9
differential_evolution step 289: f(x)= 5.9
differential_evolution step 290: f(x)= 5.9
differential_evolution step 291: f(x)= 5.9
differential_evolution step 292: f(x)= 5.9
differential_evolution step 293: f(x)= 5.9
differential_evolution step 294: f(x)= 5.9
differential_evolution step 295: f(x)= 5.9
differential_evolution step 296: f(x)= 5.9
differential_evolution step 297: f(x)= 5.9
differential_evolution step 298: f(x)= 5.9
differential_evolution step 299: f(x)= 5.9
differential_evolution step 300: f(x)= 5.9
differential_evolution step 301: f(x)= 5.9
differential_evolution step 302: f(x)= 5.9
differential_evolution step 303: f(x)= 5.9
differential_evolution step 304: f(x)= 5.9
differential_evolution step 305: f(x)= 5.9
differential_evolution step 306: f(x)= 5.9
differential_evolution step 307: f(x)= 5.9
differential_evolution step 308: f(x)= 5.9
differential_evolution step 309: f(x)= 5.9
differential_evolution step 310: f(x)= 5.9
differential_evolution step 311: f(x)= 5.9
differential_evolution step 312: f(x)= 5.9
differential_evolution step 313: f(x)= 5.9
differential_evolution step 314: f(x)= 5.9
differential_evolution step 315: f(x)= 5.9
differential_evolution step 316: f(x)= 5.9
differential_evolution step 317: f(x)= 5.9
differential_evolution step 318: f(x)= 5.9
differential_evolution step 319: f(x)= 5.9
differential_evolution step 320: f(x)= 5.9
differential_evolution step 321: f(x)= 5.9
differential_evolution step 322: f(x)= 5.9
differential_evolution step 323: f(x)= 5.9
differential_evolution step 324: f(x)= 5.9
differential_evolution step 325: f(x)= 5.9
differential_evolution step 326: f(x)= 5.9
differential_evolution step 327: f(x)= 5.9
differential_evolution step 328: f(x)= 5.9
differential_evolution step 329: f(x)= 5.9
differential_evolution step 330: f(x)= 5.9
differential_evolution step 331: f(x)= 5.9
differential_evolution step 332: f(x)= 5.9
differential_evolution step 333: f(x)= 5.9
differential_evolution step 334: f(x)= 5.9
differential_evolution step 335: f(x)= 5.9
differential_evolution step 336: f(x)= 5.9
differential_evolution step 337: f(x)= 5.9
differential_evolution step 338: f(x)= 5.9
differential_evolution step 339: f(x)= 5.9
differential_evolution step 340: f(x)= 5.9
differential_evolution step 341: f(x)= 5.8
differential_evolution step 342: f(x)= 5.8
differential_evolution step 343: f(x)= 5.8
differential_evolution step 344: f(x)= 5.699999999999999
differential_evolution step 345: f(x)= 5.699999999999999
differential_evolution step 346: f(x)= 5.699999999999999
differential_evolution step 347: f(x)= 5.699999999999999
differential_evolution step 348: f(x)= 5.699999999999999
differential_evolution step 349: f(x)= 5.699999999999999
differential_evolution step 350: f(x)= 5.699999999999999
differential_evolution step 351: f(x)= 5.699999999999999
differential_evolution step 352: f(x)= 5.699999999999999
differential_evolution step 353: f(x)= 5.699999999999999
differential_evolution step 354: f(x)= 5.699999999999999
differential_evolution step 355: f(x)= 5.699999999999999
differential_evolution step 356: f(x)= 5.1
differential_evolution step 357: f(x)= 5.1
differential_evolution step 358: f(x)= 5.1
differential_evolution step 359: f(x)= 5.1
differential_evolution step 360: f(x)= 5.1
differential_evolution step 361: f(x)= 5.1
differential_evolution step 362: f(x)= 5.1
differential_evolution step 363: f(x)= 5.1
differential_evolution step 364: f(x)= 5.1
differential_evolution step 365: f(x)= 5.1
differential_evolution step 366: f(x)= 5.1
differential_evolution step 367: f(x)= 5.1
differential_evolution step 368: f(x)= 5.1
differential_evolution step 369: f(x)= 5.1
differential_evolution step 370: f(x)= 5.1
differential_evolution step 371: f(x)= 5.1
differential_evolution step 372: f(x)= 5.1
differential_evolution step 373: f(x)= 5.1
differential_evolution step 374: f(x)= 5.1
differential_evolution step 375: f(x)= 5.1
differential_evolution step 376: f(x)= 5.1
differential_evolution step 377: f(x)= 5.1
differential_evolution step 378: f(x)= 5.1
differential_evolution step 379: f(x)= 5.1
differential_evolution step 380: f(x)= 5.1
differential_evolution step 381: f(x)= 5.1
differential_evolution step 382: f(x)= 5.1
differential_evolution step 383: f(x)= 5.1
differential_evolution step 384: f(x)= 5.1
differential_evolution step 385: f(x)= 5.1
differential_evolution step 386: f(x)= 5.1
differential_evolution step 387: f(x)= 5.1
differential_evolution step 388: f(x)= 5.1
differential_evolution step 389: f(x)= 5.1
differential_evolution step 390: f(x)= 5.1
differential_evolution step 391: f(x)= 5.1
differential_evolution step 392: f(x)= 5.1
differential_evolution step 393: f(x)= 5.1
differential_evolution step 394: f(x)= 5.1
differential_evolution step 395: f(x)= 5.1
differential_evolution step 396: f(x)= 5.1
differential_evolution step 397: f(x)= 5.1
differential_evolution step 398: f(x)= 5.1
differential_evolution step 399: f(x)= 5.1
differential_evolution step 400: f(x)= 5.1
differential_evolution step 401: f(x)= 5.1
differential_evolution step 402: f(x)= 5.1
differential_evolution step 403: f(x)= 5.1
differential_evolution step 404: f(x)= 5.1
differential_evolution step 405: f(x)= 5.1
differential_evolution step 406: f(x)= 5.1
differential_evolution step 407: f(x)= 5.1
differential_evolution step 408: f(x)= 5.1
differential_evolution step 409: f(x)= 5.1
differential_evolution step 410: f(x)= 5.1
differential_evolution step 411: f(x)= 5.1
differential_evolution step 412: f(x)= 5.1
differential_evolution step 413: f(x)= 5.1
differential_evolution step 414: f(x)= 5.1
differential_evolution step 415: f(x)= 5.1
differential_evolution step 416: f(x)= 5.1
differential_evolution step 417: f(x)= 5.1
differential_evolution step 418: f(x)= 5.1
differential_evolution step 419: f(x)= 4.5
differential_evolution step 420: f(x)= 4.5
differential_evolution step 421: f(x)= 4.5
differential_evolution step 422: f(x)= 4.5
differential_evolution step 423: f(x)= 4.5
differential_evolution step 424: f(x)= 4.5
differential_evolution step 425: f(x)= 4.5
differential_evolution step 426: f(x)= 4.5
differential_evolution step 427: f(x)= 4.5
differential_evolution step 428: f(x)= 4.5
differential_evolution step 429: f(x)= 4.5
differential_evolution step 430: f(x)= 4.5
differential_evolution step 431: f(x)= 4.5
differential_evolution step 432: f(x)= 4.5
differential_evolution step 433: f(x)= 4.5
differential_evolution step 434: f(x)= 4.5
differential_evolution step 435: f(x)= 4.5
differential_evolution step 436: f(x)= 4.5
differential_evolution step 437: f(x)= 4.5
differential_evolution step 438: f(x)= 4.5
differential_evolution step 439: f(x)= 4.5
differential_evolution step 440: f(x)= 4.5
differential_evolution step 441: f(x)= 4.5
differential_evolution step 442: f(x)= 4.5
differential_evolution step 443: f(x)= 4.5
differential_evolution step 444: f(x)= 4.5
differential_evolution step 445: f(x)= 4.5
differential_evolution step 446: f(x)= 4.5
differential_evolution step 447: f(x)= 4.5
differential_evolution step 448: f(x)= 4.5
differential_evolution step 449: f(x)= 4.5
differential_evolution step 450: f(x)= 4.5
differential_evolution step 451: f(x)= 4.5
differential_evolution step 452: f(x)= 4.5
differential_evolution step 453: f(x)= 4.5
differential_evolution step 454: f(x)= 4.5
differential_evolution step 455: f(x)= 4.5
differential_evolution step 456: f(x)= 4.5
differential_evolution step 457: f(x)= 4.5
differential_evolution step 458: f(x)= 4.5
differential_evolution step 459: f(x)= 4.5
differential_evolution step 460: f(x)= 4.5
differential_evolution step 461: f(x)= 4.5
differential_evolution step 462: f(x)= 4.5
differential_evolution step 463: f(x)= 4.5
differential_evolution step 464: f(x)= 4.5
differential_evolution step 465: f(x)= 4.5
differential_evolution step 466: f(x)= 4.5
differential_evolution step 467: f(x)= 4.5
differential_evolution step 468: f(x)= 4.5
differential_evolution step 469: f(x)= 4.5
differential_evolution step 470: f(x)= 4.5
differential_evolution step 471: f(x)= 4.5
differential_evolution step 472: f(x)= 4.5
differential_evolution step 473: f(x)= 4.5
differential_evolution step 474: f(x)= 4.5
differential_evolution step 475: f(x)= 4.5
differential_evolution step 476: f(x)= 4.5
differential_evolution step 477: f(x)= 4.5
differential_evolution step 478: f(x)= 4.5
differential_evolution step 479: f(x)= 4.5
differential_evolution step 480: f(x)= 4.5
differential_evolution step 481: f(x)= 4.5
differential_evolution step 482: f(x)= 4.5
differential_evolution step 483: f(x)= 4.5
differential_evolution step 484: f(x)= 4.5
differential_evolution step 485: f(x)= 4.5
differential_evolution step 486: f(x)= 4.5
differential_evolution step 487: f(x)= 4.5
differential_evolution step 488: f(x)= 4.5
differential_evolution step 489: f(x)= 4.5
differential_evolution step 490: f(x)= 4.5
differential_evolution step 491: f(x)= 4.5
differential_evolution step 492: f(x)= 4.5
differential_evolution step 493: f(x)= 4.5
differential_evolution step 494: f(x)= 4.5
differential_evolution step 495: f(x)= 4.5
differential_evolution step 496: f(x)= 4.5
differential_evolution step 497: f(x)= 4.5
differential_evolution step 498: f(x)= 4.5
differential_evolution step 499: f(x)= 4.5
differential_evolution step 500: f(x)= 4.5
differential_evolution step 501: f(x)= 4.5
differential_evolution step 502: f(x)= 4.5
differential_evolution step 503: f(x)= 4.5
differential_evolution step 504: f(x)= 4.5
differential_evolution step 505: f(x)= 4.5
differential_evolution step 506: f(x)= 4.5
differential_evolution step 507: f(x)= 4.5
differential_evolution step 508: f(x)= 4.5
differential_evolution step 509: f(x)= 4.5
differential_evolution step 510: f(x)= 4.5
differential_evolution step 511: f(x)= 4.5
differential_evolution step 512: f(x)= 4.5
differential_evolution step 513: f(x)= 4.5
differential_evolution step 514: f(x)= 4.5
differential_evolution step 515: f(x)= 4.5
differential_evolution step 516: f(x)= 4.5
differential_evolution step 517: f(x)= 4.5
message: Optimization terminated successfully.
success: True
fun: 4.5
x: [ 0.000e+00 8.000e+00 ... 1.400e+01 0.000e+00]
nit: 517
nfev: 17373
population: [[ 0.000e+00 8.000e+00 ... 1.400e+01 0.000e+00]
[ 0.000e+00 7.000e+00 ... 1.400e+01 0.000e+00]
...
[ 0.000e+00 8.000e+00 ... 1.300e+01 0.000e+00]
[ 0.000e+00 9.000e+00 ... 1.400e+01 0.000e+00]]
population_energies: [ 4.500e+00 4.500e+00 ... 4.500e+00 4.500e+00]
constr: [array([ 0.000e+00, 0.000e+00, ..., 0.000e+00,
0.000e+00])]
constr_violation: 0.0
maxcv: 0.0
Yopt = result.x
OptInterv = cumulateFreq(Yopt.reshape((nt, nb)).T)
X_bt = Frequency2Schedule(Yopt, nb, nt, Thoriz)
beta_bt = MaintenanceApplication(beta_bt0, X_bt, Thoriz)
print(f'Min Cost = {result.fun:.2f}')
ninterv = np.sum(CountNinterv(Yopt, nt, nb))
print(f'Number of interventions = {ninterv}')
c = nonlcon(Yopt)
BudgetIssues = np.sum(c[-Thoriz - 1:-1] > 0)
print(f'Number of time intervals with exceeding budget = {BudgetIssues}')
reliabIssues = c[-1]
print(f'Number of time intervals with reliability issues = {reliabIssues}')

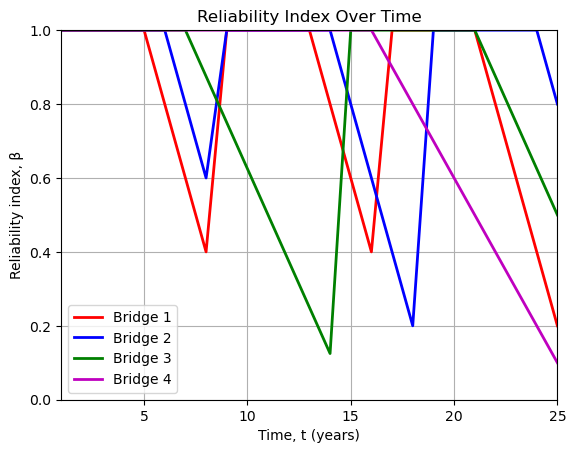

plt.figure()
h = []
leg = []
for b in range(nb):
h.append(plt.plot(range(1, Thoriz + 1), beta_bt[b, :], f'-{col[b]}', linewidth=2))
leg.append(f'Bridge {b + 1}')
plt.legend(leg, loc='best')
plt.grid()
plt.xlim([1, Thoriz])
plt.ylim([0, 1])
plt.xlabel('Time, t (years)')
plt.ylabel('Reliability index, β')
plt.title('Reliability Index Over Time')
plt.show()
Min Cost = 4.50
Number of interventions = 6
Number of time intervals with exceeding budget = 0
Number of time intervals with reliability issues = 0.0
