Puntlast op gekromde constructie#
import sympy as sp
import numpy as np
import matplotlib.pyplot as plt
sf = sp.SingularityFunction
x, z = sp.symbols('x y')
EI, EA = sp.symbols('EI EA')
CV, CM, Cphi, Cuz, CN, Cux = sp.symbols('C_V C_M C_φ C_uz C_N C_ux')
h_of_x = 1-sp.cos(x)
v_of_x = -sp.sin(x)
dh_dx = sp.diff(h_of_x,x)
d2h_dx2 = sp.diff(dh_dx,x)
dv_dx = sp.diff(v_of_x,x)
d2v_dx2 = sp.diff(dv_dx,x)
def h_x(x):
return 1-np.cos(x)
def v_x(x):
return -np.sin(x)
end = np.pi/2
Fh_h = 0
Fh_v = 0
n = [2, 5, 12, 'r']
num = len(n)-1
h = np.zeros(len(n), dtype=object)
v = np.zeros(len(n), dtype=object)
x_np = np.zeros(len(n), dtype=object)

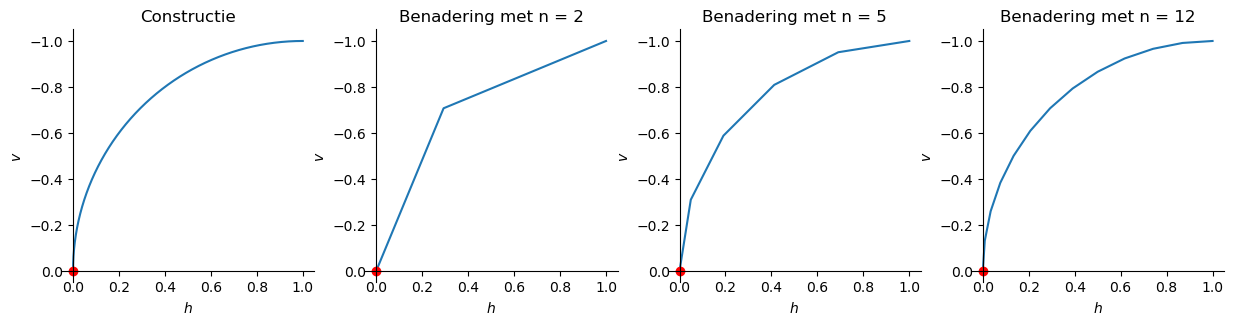

fig, axes = plt.subplots(1, len(n), figsize=(15, 5))
for i in range(-1, num):
if n[i] == 'r':
x_np[i] = np.linspace(0,end,1000)
titel = 'Constructie'
else:
x_np[i] = np.linspace(0,end,n[i]+1)
titel = f'Benadering met n = {n[i]}'
h[i] = np.zeros(len(x_np[i]))
v[i] = np.zeros(len(x_np[i]))
for j in range(len(x_np[i])):
h[i][j] = h_x(x_np[i][j])
v[i][j] = v_x(x_np[i][j])
axes[i+1].plot(h[i], v[i])
axes[i+1].plot(Fh_h,Fh_v, marker='o', label= 'Fh', color= 'r')
axes[i+1].set_xlabel('$h$')
axes[i+1].set_ylabel('$v$')
axes[i+1].set_title(titel)
axes[i+1].spines['right'].set_color('none')
axes[i+1].spines['top'].set_color('none')
axes[i+1].spines['bottom'].set_position('zero')
axes[i+1].spines['left'].set_position('zero')
axes[i+1].invert_yaxis()
axes[i+1].set_aspect('equal')
a = np.zeros(num, dtype=object)
theta = np.zeros(num, dtype=object)
b = np.zeros(len(n), dtype=object)
thetab = np.zeros(num, dtype=object)
for i in range(num):
a[i] = np.zeros(len(h[i]))
theta[i] = np.zeros(len(h[i])-1)
b[i] = np.zeros(2)
for j in range(1,len(a[i])):
a[i][j] = a[i][j-1] + np.sqrt((h[i][j]-h[i][j-1])**2 + (v[i][j]-v[i][j-1])**2)
for j in range(0,len(theta[i])):
theta[i][j] = np.arctan(-(v[i][j+1]-v[i][j])/(h[i][j+1]-h[i][j]))
for j in range(len(a[i])):
if h[i][j]==Fh_h:
b[i][0] = a[i][j]
thetab[i] = theta[i][j]
b[i][1] = a[i][-1]
b[-1] = [0, end]
def qz_Fv(Fv, b):
return Fv * (sf(x,b,-1)*dh_dx.subs(x,b) + d2h_dx2*sf(x,b,0))
def qx_Fv(Fv, b):
return Fv * (sf(x,b,-1)*dv_dx.subs(x,b) + d2v_dx2*sf(x,b,0))
def qz_Fh(Fh, b):
return -Fh * (sf(x,b,-1)*dv_dx.subs(x,b) + d2v_dx2*sf(x,b,0))
def qx_Fh(Fh, b):
return Fh * (sf(x,b,-1)*dh_dx.subs(x,b) + d2h_dx2*sf(x,b,0))
def qz_T(T, b):
return T * sf(x,b,-2)
Fh, Rv, Rh, Tr = sp.symbols('Fh R_v R_h T_R')
qz = np.zeros(len(n), dtype=object)
qx = np.zeros(len(n), dtype=object)
for i in range(num):
qz[i] = (Fh * sf(x,b[i][0],-1) * np.sin(thetab[i]) +
Rv * sf(x,b[i][1],-1) * np.cos(theta[i][-1]) +
Rh * sf(x,b[i][1],-1) * np.sin(theta[i][-1]) +
Tr * sf(x,b[i][1],-2))
for j in range(len(theta[i])):
if a[i][j] > b[i][0]:
qz[i] += Fh * sf(x,a[i][j],-1) * (np.sin(theta[i][j]) - np.sin(theta[i][j-1]))
qx[i] = (Fh * sf(x,b[i][0],-1) * np.cos(thetab[i]) -
Rv * sf(x,b[i][1],-1) * np.sin(theta[i][-1]) +
Rh * sf(x,b[i][1],-1) * np.cos(theta[i][-1]))
for j in range(len(theta[i])):
if a[i][j] > b[i][0]:
qx[i] += Fh * sf(x,a[i][j],-1) * (np.cos(theta[i][j]) - np.cos(theta[i][j-1]))
qz[-1] = qz_Fh(Fh, b[-1][0]) + qz_Fv(Rv, b[-1][1]) + qz_Fh(Rh, b[-1][1]) + qz_T(Tr, b[-1][1])
qx[-1] = qx_Fh(Fh, b[-1][0]) + qx_Fv(Rv, b[-1][1]) + qx_Fh(Rh, b[-1][1])
V = np.zeros(len(n), dtype=object)
M = np.zeros(len(n), dtype=object)
kappa = np.zeros(len(n), dtype=object)
phi = np.zeros(len(n), dtype=object)
uz = np.zeros(len(n), dtype=object)
N = np.zeros(len(n), dtype=object)
epsilon = np.zeros(len(n), dtype=object)
ux = np.zeros(len(n), dtype=object)
for i in range(len(n)):
V[i] = -sp.integrate(qz[i], x) + CV
M[i] = sp.integrate(V[i], x) + CM
kappa[i] = M[i] / EI
phi[i] = sp.integrate(kappa[i], x) + Cphi
uz[i] = -sp.integrate(phi[i], x) + Cuz
N[i] = -sp.integrate(qx[i], x) + CN
epsilon[i] = N[i] / EA
ux[i] = sp.integrate(epsilon[i], x) + Cux
uvz = np.zeros(len(n), dtype=object)
uvx = np.zeros(len(n), dtype=object)
uhz = np.zeros(len(n), dtype=object)
uhx = np.zeros(len(n), dtype=object)
uv = np.zeros(len(n), dtype=object)
uh = np.zeros(len(n), dtype=object)
for i in range(num):
uvz[i] = uz[i].subs(x,a[i][0]) * sp.cos(theta[i][0])
uvx[i] = -ux[i].subs(x,a[i][0]) * sp.sin(theta[i][0])
for j in range(len(theta[i])):
uvz[i] += ((uz[i] - uz[i].subs(x,a[i][j])) * sf(x,a[i][j],0) - (uz[i] - uz[i].subs(x,a[i][j+1])) * sf(x,a[i][j+1],0)) * sp.cos(theta[i][j])
uvx[i] += -((ux[i] - ux[i].subs(x,a[i][j])) * sf(x,a[i][j],0) - (ux[i] - ux[i].subs(x,a[i][j+1])) * sf(x,a[i][j+1],0)) * sp.sin(theta[i][j])
uv[i] = uvz[i] + uvx[i]
uhz[i] = uz[i].subs(x,a[i][0]) * sp.sin(theta[i][0])
uhx[i] = ux[i].subs(x,a[i][0]) * sp.cos(theta[i][0])
for j in range(len(theta[i])):
uhz[i] += ((uz[i] - uz[i].subs(x,a[i][j])) * sf(x,a[i][j],0) - (uz[i] - uz[i].subs(x,a[i][j+1])) * sf(x,a[i][j+1],0)) * sp.sin(theta[i][j])
uhx[i] += ((ux[i] - ux[i].subs(x,a[i][j])) * sf(x,a[i][j],0) - (ux[i] - ux[i].subs(x,a[i][j+1])) * sf(x,a[i][j+1],0)) * sp.cos(theta[i][j])
uh[i] = uhz[i] + uhx[i]
s = sp.symbols('s')
uvz[-1] = uz[-1] * dh_dx - sp.integrate(uz[-1].subs(x,s) * d2h_dx2.subs(x,s), (s, 0, x))
uvx[-1] = ux[-1] * dv_dx - sp.integrate(ux[-1].subs(x,s) * d2v_dx2.subs(x,s), (s, 0, x))
uhz[-1] = -uz[-1] * dv_dx + sp.integrate(uz[-1].subs(x,s) * d2v_dx2.subs(x,s), (s, 0, x))
uhx[-1] = ux[-1] * dh_dx - sp.integrate(ux[-1].subs(x,s) * d2h_dx2.subs(x,s), (s, 0, x))
uv[-1] = uvz[-1] + uvx[-1]
uh[-1] = uhz[-1] + uhx[-1]
oo = sp.Dummy('oo', prime=True)
dx = 1/oo
Eq1 = [sp.Eq(N[i].subs(x,b[i][0]-dx),0).subs(oo,sp.oo) for i in range(len(n))]
Eq2 = [sp.Eq(N[i].subs(x,b[i][1]+dx),0).subs(oo,sp.oo) for i in range(len(n))]
Eq3 = [sp.Eq(V[i].subs(x,b[i][0]-dx),0).subs(oo,sp.oo) for i in range(len(n))]
Eq4 = [sp.Eq(V[i].subs(x,b[i][1]+dx),0).subs(oo,sp.oo) for i in range(len(n))]
Eq5 = [sp.Eq(M[i].subs(x,b[i][0]),0) for i in range(len(n))]
Eq6 = [sp.Eq(M[i].subs(x,b[i][1]+dx),0).subs(oo,sp.oo) for i in range(len(n))]
Eq7 = [sp.Eq(phi[i].subs(x,b[i][1]),0) for i in range(len(n))]
Eq8 = [sp.Eq(uv[i].subs(x,b[i][1]),0) for i in range(len(n))]
Eq9 = [sp.Eq(uh[i].subs(x,b[i][1]),0) for i in range(len(n))]
sol = [sp.solve((Eq1[i],Eq2[i],Eq3[i],Eq4[i],Eq5[i],Eq6[i],Eq7[i],Eq8[i],Eq9[i]),(Rv,Rh,Tr,CN,CV,CM,Cphi,Cuz,Cux)) for i in range(len(n))]
factors = {Fh: 5000,
EI: 3 * 10**4,
EA: 10**4}
N_np = [sp.lambdify(x, N[i].subs(sol[i]).subs(factors).rewrite(sp.Piecewise)) for i in range(len(n))]
V_np = [sp.lambdify(x, V[i].subs(sol[i]).subs(factors).rewrite(sp.Piecewise)) for i in range(len(n))]

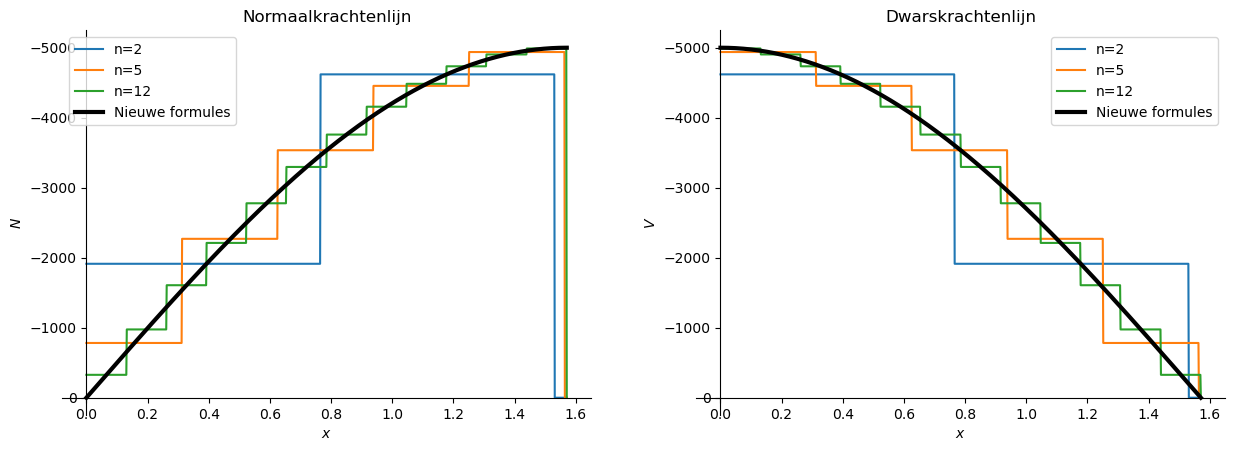

fig, axes = plt.subplots(1, 2, figsize=(15, 5))
for i in range(len(n)):
if n[i] == 'r':
axes[0].plot(x_np[-1],N_np[i](x_np[-1]), label='Nieuwe formules', color='black', linewidth=3)
axes[1].plot(x_np[-1],V_np[i](x_np[-1]), label='Nieuwe formules', color='black', linewidth=3)
else:
axes[0].plot(x_np[-1],N_np[i](x_np[-1]), label = f'n={n[i]}')
axes[1].plot(x_np[-1],V_np[i](x_np[-1]), label = f'n={n[i]}')
axes[0].legend()
axes[0].set_xlabel('$x$')
axes[0].set_ylabel('$N$')
axes[0].set_title('Normaalkrachtenlijn')
axes[0].spines['right'].set_color('none')
axes[0].spines['top'].set_color('none')
axes[0].spines['bottom'].set_position('zero')
axes[0].spines['left'].set_position('zero')
axes[1].legend()
axes[1].set_xlabel('$x$')
axes[1].set_ylabel('$V$')
axes[1].set_title('Dwarskrachtenlijn')
axes[1].spines['right'].set_color('none')
axes[1].spines['top'].set_color('none')
axes[1].spines['bottom'].set_position('zero')
axes[1].spines['left'].set_position('zero')
axes[0].invert_yaxis()
axes[1].invert_yaxis()
v_co = np.zeros(num, dtype=object)
h_co = np.zeros(num, dtype=object)
v_np = np.zeros(len(n), dtype=object)
h_np = np.zeros(len(n), dtype=object)
for i in range(num):
for j in range(len(theta[i])):
v_co[i] += -(sf(x,a[i][j],1) - sf(x,a[i][j+1],1)) * sp.sin(theta[i][j])
h_co[i] += (sf(x,a[i][j],1) - sf(x,a[i][j+1],1)) * sp.cos(theta[i][j])
v_np[i] = sp.lambdify(x, v_co[i].rewrite(sp.Piecewise))
h_np[i] = sp.lambdify(x, h_co[i].rewrite(sp.Piecewise))
v_np[-1] = sp.lambdify(x, v_of_x.rewrite(sp.Piecewise))
h_np[-1] = sp.lambdify(x, h_of_x.rewrite(sp.Piecewise))
uv_np = [sp.lambdify(x, uv[i].subs(sol[i]).subs(factors).rewrite(sp.Piecewise)) for i in range(len(n))]
uh_np = [sp.lambdify(x, uh[i].subs(sol[i]).subs(factors).rewrite(sp.Piecewise)) for i in range(len(n))]

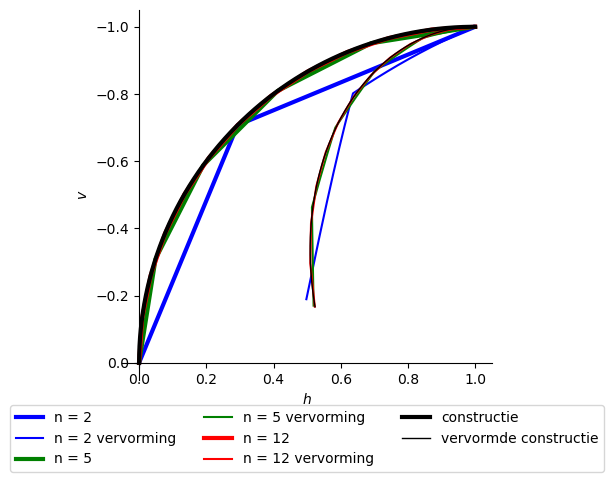

plt.figure()
colors = ['blue', 'green', 'red']
for i in range(num):
c = colors[i]
line = plt.plot(h_np[i](x_np[-1]),v_np[i](x_np[-1]), linewidth=3, color=c, label=f'n = {n[i]}')
plt.plot(h_np[i](x_np[-1])+uh_np[i](x_np[-1]),v_np[i](x_np[-1])+uv_np[i](x_np[-1]), label=f'n = {n[i]} vervorming', color=c)
plt.plot(h_np[-1](x_np[-1]),v_np[-1](x_np[-1]), linewidth=3, color='black', label='constructie')
plt.plot((h_np[-1](x_np[-1])+uh_np[-1](x_np[-1])),(v_np[-1](x_np[-1])+uv_np[-1](x_np[-1])), linewidth=1, color='black', label='vervormde constructie')
plt.xlabel('$h$')
plt.ylabel('$v$');
ax = plt.gca()
ax.spines['right'].set_color('none')
ax.spines['top'].set_color('none')
ax.spines['bottom'].set_position('zero')
ax.spines['left'].set_position('zero')
plt.axis('scaled')
ax.legend(loc='upper center', bbox_to_anchor=(0.5, -0.05),fancybox=True, shadow=False, ncol=3);
ax.invert_yaxis()
