Shear force centre

Shear force centre

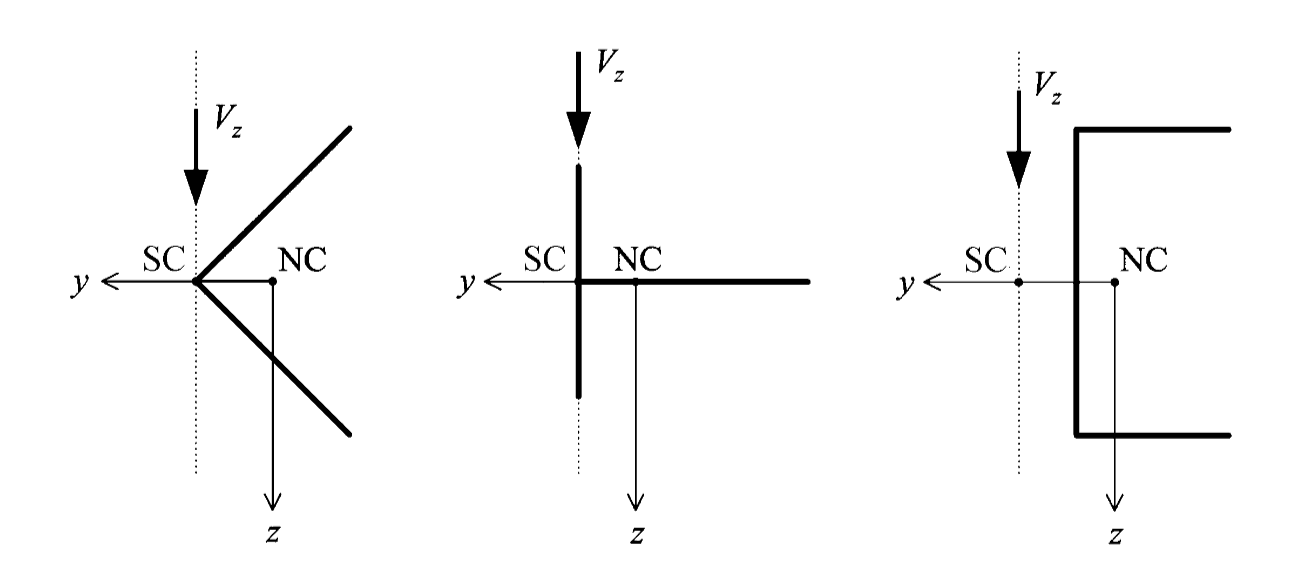

The shear force centre SC is that point in the cross-section through which the line of action of the shear force has to pass so that there will to be no torsion.

This is treated in chapter 5.5 of the book Engineering Mechanics Volume 2 (Hartsuijker and Welleman, 2007). A demonstration of deformation due to loading into and next to the shear force center can be found here under ‘Model 6’.

Instructions from lecture

This topic is presented in Dutch in a lecture available from 0:11:40 - 0:31:20 here. This doesn’t include determining the location of the shear force centre, which is treated only in the book.

Exercises

Exercises 5.49-5.54, in chapter 5.8 of the book Engineering Mechanics Volume 2 (Hartsuijker and Welleman, 2007). Answers are available on this website.
